Description
Powerparts BCA Campervan Converter PDU EC155 and Harness Kit with Water Probe
The converter PDU harness kit
Powerpart BCA Converter PDU DC21004
Power Distribution and Harness Kit For Campervans
The converter PDU harness kit is the ideal solution for converting your van into a camper.
With a complete plug and play system, compact yet powerful PDU unit,
Sleek Control panel makes carrying out a conversion easier.
Included in Kit:
- PDU
- Wiring Harness
- Vegas Control Panel
- Water probe (for onboard water tanks)
The PDU has a 230V input to a 25amp RCD that provides 4 230V outputs for sockets and appliances through a 16-amp MCB.
It also has a 6amp MCB for the 10amp power supply which converters 230V to 12V.
There are 12 separate fuse protected outputs for
- Auxiliary
- Lights
- Hob/Oven
- Heater
- Pump/toilet
- Control Panel Ignition
- Control Panel Perm
- Fridge, Fridge 3S
- Permanent
- Leisure Battery
- Vehicle Battery.
PDU Dimensions – Width: 307mm Depth: 93mm Height: 262mm
The Wiring Harness has 300mm Ignition, permanent and water probe options from the PDU and a 1m length from the PDU breaking out into separate 1m lengths to feeds for: x2 lights, x2 Auxiliary, 12V fridge, Heater, Hob/Oven, Toilet, Pump and a 2M length to the Control Panel.

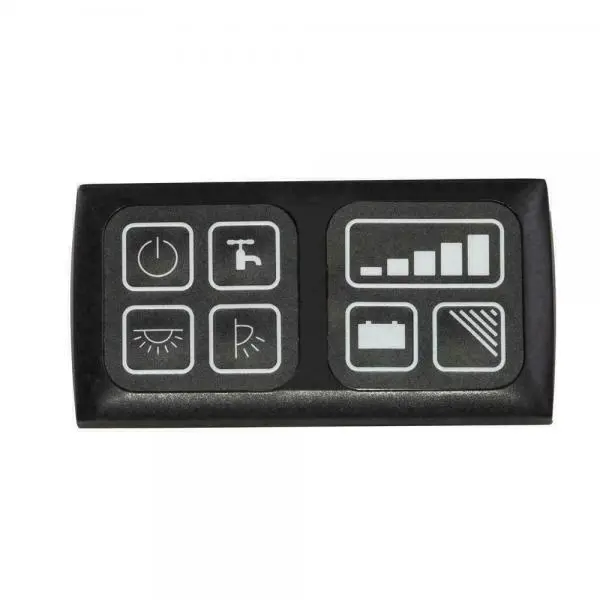

Vegas control Panel is x 2 C-Line in size.
The Button Panel has a master switch, Lights switch and Awning light switch, 2 amp rated (Connection to awning light from Control Panel) and the meter Panel has a voltmeter and water level indicator.
