Powerparts BCA Converter PDU Power Distribution Unit Similar to Sargent EC155

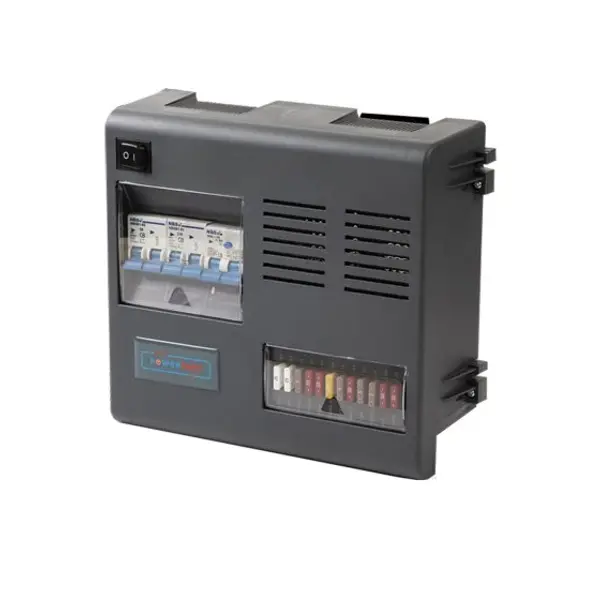

Powerparts BCA Converter Power Distribution Unit
The connector PDU harness kit is the ideal solution for converting your van into a camper.
A compact yet powerful PDU unit, and everything you will need to connect to the PDU.
The Perfect complement if you wish to carrying out all your own wiring and choose your control panel, carrying out a conversion could not be easier.
Included in Kit:
PDU, Connector Kit The PDU has a 230V input to a Type A 25amp RCD that provides 4 x 230V outputs for sockets and appliances through a 16-amp MCB.
It also has a 6amp MCB for the 10amp power supply which converters 230V to 12V.
There are 12 separate fuse protected outputs for:
Auxiliary, Lights, Hob or Oven, Heater, Pump and toilet, Control Panel Ignition, Control Panel Perm, Fridge, Fridge 3S, Permanent, Leisure Battery, Vehicle Battery.
PDU Dimensions
Width: 307mm
Depth: 93mm
Height: 262mm.
This Kit also comes with all the Connectors and terminals needed to connect to the PDU.
